T11 10ft ISO Tank Container for Water or Fuel 316L Stainless Steel UN Portable 10CBM 10000L SPA-H Frame Material

Type : Tank Container, T11

Length (feet) : 10ft

Capacity : 10000L

External Dimensions(l x W x H)(mm) : 2991 x 2438 x 2591mm

Internal Dimensions(l x W x H)(mm) : 10 CBM

Place of Origin : Tianjin, China

Brand Name : ACE

Material : Corten-A

Frame Material : SPA-H,Q345D or equivalent

Tank Material : 316L/SAN50028-7/WNr 1.4402/1.4404

Insulation : Rockwood

Design Temperature : -40 to +130 centigrade

Certificate : BV, LR

Approval : IMDG, CFR49, ADR/RID, AAR 600, CSC, TC, TIR, ISO UIC, US/UK DOT

Design Code : ASME VIII Div. 2

Price : $16,800.00/pieces 1-1 pieces

MOQ : 1 pieces

Delivery Time : within 30 days

Contact Now

T11 10ft ISO Tank Container for Water or Fuel 316L Stainless Steel UN Portable 10CBM 10000L SPA-H Frame Material

Hot Sale Products

Product Description

Brand New ASME Standard T11 10ft ISO Tank Container

T4 20ft iso tank container, Full Frame Potable Tank Container, which is widely used to transport kinds of liquid chemical medium.The shell is 316 stainless steel, the frame is made of strong steel Corten A or equal material, which are testing by LR.

Our T11 10ft iso tank container is designed as perASME standard, and meeting IMO/IMDG, ISO, UN, CSC, TIR, UIC, TC, ADR/RID L4BN.The Capacity is 10000L.

Product Spefications

Specifications - T11 10 iso tank container
Frame Dimensions (L x W x H)			2991 x 2438 x 2591 mm
Nominal Capacity			10000 litre (±0.75%)
Maximum Gross Mass			16000 kgs
Tare Mass			2300 kg (± 3%)
Design Temperature (Frame & Tank)			-40 to +130 °C
Pressure	Working	4.0 bar
Pressure		Test	6.0 bar
Material	Tank (Shell & Ends)	SANS 50028-7 Type 1.4402/1.4404 (C≤0.03%)
Material		Frame	SPA-H or equivalent
Insulation	Shell	Not fitted
Insulation		Ends	Not fitted
Steam Heating	Not fitted
Manhole	500mm low profile, 8 point fixing with Super Tanktyt Lid seal.
Safety Relief Assembly	1 x 2.5” BSP pressure relief valve without flameproof gauze.
Air Inlet A ssembly	DN 40 ball valve terminating with 1½" BSP connection and cap. The assembly is situated off centre on a tangential tank pad.
Top Discharge	1 x 3” weld in pad (drilled with 6 x M12 PCD 168mm) completes with blank flange. A siphon tube guide plate is welded on bottom floor of tank.
Bottom Discharge	1 x 3” 45° high-lift foot valve with opening handle and 3” clamped butterfly valve terminating with 3” BSP stainless steel spigot and dust cap with retaining chain.
Thermometer	1 off, Dual scale thermometer, -40° C to 160° C, fitted on rear end to lower right side
Document holder	A clear plastic document holder ø110mm is fitted to the rear right hand side beam. A drain hole is provided at the lowest point.
Calibration	A calibration plate marked in cm/litres is fitted on the spillbox side wall. No calibrated stainless steel grade dipstick and bracket fitted.
Design Code	ASME VIII DIV. 1
Approval	IMDG, US DOT CFR 49, RID/ADR, CSC, TC, TIR / Customs, UIC, ISO 1496/3

Packing & Shipment

New 20ft Tank Container has no any package, it's with LR certified, can be shipped as SOC directly.

For other detailed package, please check as follows:

Our Company

FAQ

1. Are your T11 10ft ISO tank containers brand new? Yes, all the containers we provide are brand new. In fact, we begin manufacturing the containers only after receiving order confirmation. 2. Do your T11 10ft ISO tank containers meet international requirements? Yes, all of our tank containers are approved by BV, LR, or CCS and comply with the following international standards:

ISO 1496/3 UN Transport of Dangerous Goods UIC International Rail Approval TIR International Transport of Goods under Customs Seal CSC International Convention for Safe Containers DOT US Code Federal Regulations CFR49 DOT UK Carriage of Dangerous Goods CTC Canadian Transport Commission (Rail) AAR American Association of Railroads FRA Federal Rail Administration USA BAM G.D.R Domestic Approval ISO/TC11

3. Can you provide drawings for confirmation? Yes, we will provide detailed drawings for your confirmation before production begins, once the order is confirmed. 4. Do you provide OEM services? Yes, we have a highly skilled team that can design and customize the product according to your specific requirements.

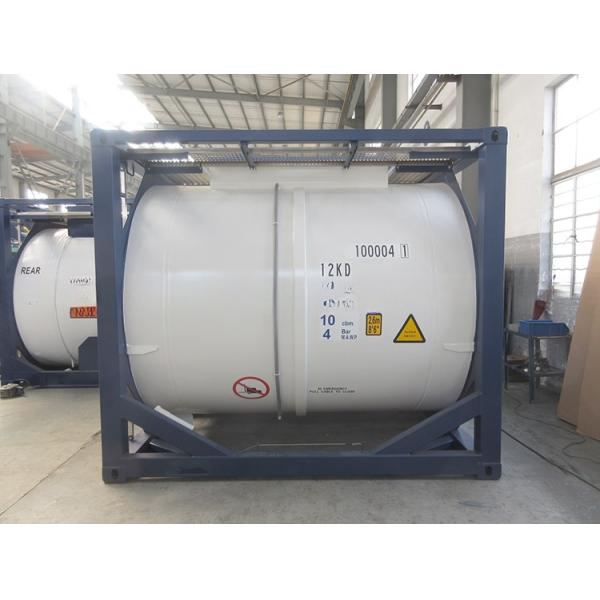

T11 10ft ISO Tank Container for Water or Fuel 316L Stainless Steel UN Portable 10CBM 10000L SPA-H Frame Material Images
